BENINCA BULL15M

Description

The BENINCA BULL15M Sliding Gate Motor, available from IGTS Technical Services UAE, is a high-performance 230V commercial sliding gate motor designed for gates weighing up to 1500 kg. Built for reliable, quiet, and precise operation, this motor is ideal for residential complexes, condominiums, and commercial properties in Dubai, Sharjah, Ajman, and Abu Dhabi. For a sliding gate motor near me, choose IGTS Technical Services, the #1 company and one of the best companies in the UAE for gate automation.

Powerful and Accurate Operation

The BULL15M motor delivers smooth automation for gates up to 1500 kg. It features an integrated encoder device, which ensures maximum precision during every manoeuvring step. The motor can store up to 64 transmitters in its receiver, providing flexibility for multiple users and enhanced security.

Advanced Safety and Control

Equipped with a built-in control unit and receiver, the BULL15M guarantees safe operation. Its encoder and magnetic limit switches provide precise control and obstacle detection. The motor is designed for intensive use, with a duty cycle of 60%, IP44 protection, and an operating temperature range from -20°C to +50°C.

Complete Installation Kit

The BENINCA BULL15M comes as a comprehensive kit, including all necessary accessories for fast installation. It allows quick setup and ensures your gate operates reliably from day one.

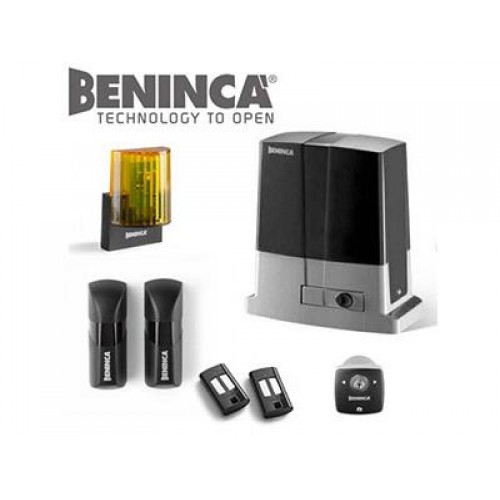

BENINCA BULL15M Kit Includes:

• 1 x Beninca Bull 15M Sliding Gate Motor

• 2 x Beninca Remote Controls 433.92 MHz

• 1 x Pair of Photocells for outdoor use

• 1 x Built-in Control Unit

• 4 x Nylon Rack 1m

• 1 x Blinker Light

• 1 x Push Button

Technical Specifications:

• Maximum Gate Weight: 1500 kg

• Power Supply: 230V AC (50–60Hz)

• Motor Supply: 230V AC

• Max Absorbed Current: 2.5 A

• Maximum Thrust: 1250 N

• Opening Speed: 10.5 m/min

• Duty Cycle: 60%

• Protection Level: IP44

• Built-in Control Unit: Yes

• Integrated Receiver: Yes

• Encoder: Yes (Virtual Encoder Included)

• Magnetic Limit Switches: Yes

• Pinion for Rack: M4 Z18

• Operating Temperature: -20°C to +50°C

• Lubrication: Grease

• Motor Weight: 19.6 kg
