BENINCA BULL20M

Description

The BENINCA BULL20M Sliding Gate Motor, available from IGTS Technical Services UAE, is a high-performance 230V industrial sliding gate motor designed for gates weighing up to 2000 kg. Built for reliable, quiet, and precise operation, this motor is perfect for residential complexes, condominiums, and industrial applications in Dubai, Sharjah, Ajman, and Abu Dhabi. For a sliding gate motor near me, trust IGTS Technical Services, the #1 company and one of the best companies in the UAE for gate automation.

Powerful and Precise Operation

The BULL20M motor guarantees smooth automation for gates up to 2000 kg. Its integrated encoder device ensures accurate control during every manoeuvre. The motor also supports up to 64 transmitters in its receiver, making it ideal for multiple users and secure gate management.

Advanced Safety and Control

Equipped with a built-in control unit and receiver, the BULL20M provides maximum safety during operation. The encoder device ensures precise movement and prevents errors. With a duty cycle of 40%, IP44 protection, and an operating temperature range from -20°C to +50°C, this motor performs reliably in diverse conditions.

Complete Installation Kit

The BENINCA BULL20M comes as a full kit, including all necessary accessories for quick and easy installation. It allows a fast setup and ensures smooth, long-lasting performance.

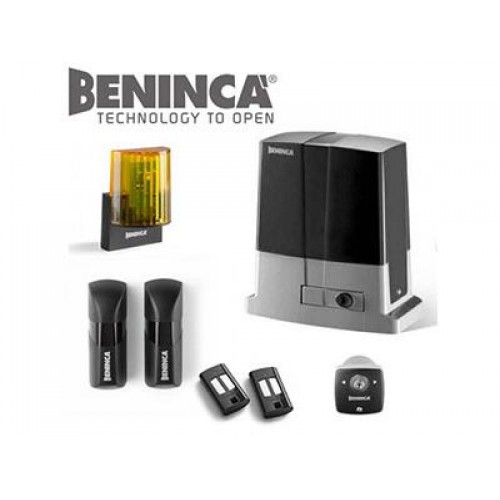

BENINCA BULL20M Kit Includes:

• 1 x Beninca Bull 20M Sliding Gate Motor

• 2 x Beninca Remote Controls 433.92 MHz

• 1 x Pair of Photocells for outdoor use

• 1 x Built-in Control Unit

• 4 x Nylon Rack 1m

• 1 x Blinker Light

• 1 x Push Button

Technical Specifications:

• Maximum Gate Weight: 2000 kg

• Power Supply: 230V AC (50–60Hz)

• Motor Supply: 230V AC

• Max Absorbed Current: 2.9 A

• Maximum Thrust: 1667 N

• Opening Speed: 10.5 m/min

• Duty Cycle: 40%

• Protection Level: IP44

• Built-in Control Unit: Yes

• Integrated Receiver: Yes

• Encoder: Yes

• Virtual Encoder: No

• Magnetic Limit Switches: No

• Pinion for Rack: M4 Z18

• Operating Temperature: -20°C to +50°C

• Lubrication: Grease

• Motor Weight: 21.1 kg
