CAME ATI 3000

Description

CAME ATI 3000 Swing Gate Motor in Dubai – Powerful Automation by IGTS Technical Services

The CAME ATI 3000 is a high-performance swing gate motor designed for gates up to 3 meters in length and 400 kg. Provided by IGTS Technical Services, it ensures smooth and reliable automation for residential and commercial gates in Dubai, Sharjah, Ajman, and Abu Dhabi.

Key Features of CAME ATI 3000

• Irreversible 230 V gearmotor with opening limit microswitch.

• Obstacle amperometric detection for enhanced safety.

• Motor and encoder management via a three-wire cable (24 V DC version).

• Operation during power outages available in 24 V DC versions.

• Compact and durable design for long-lasting performance.

Technical Specifications:

• IP Protection Rating: IP44

• Motor Power: 230 V AC 50/60Hz

• Current Draw: 1.2 A

• Power Consumption: 260 W

• Maneuver Time (90°): 19–25 s

• Cycles/Hour: 24

• Thrust: 400–4000 N

• Operating Temperature: -20°C to +55°C

• Motor Thermal Protection: 150°C

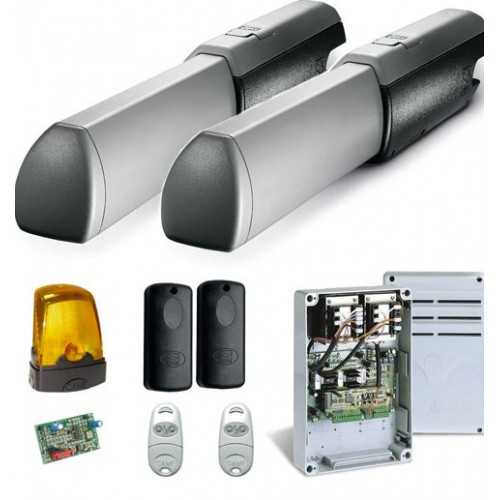

CAME ATI 3000 Kit Includes:

• 2 x CAME ATI 3000 Irreversible 230 V Gearmotor with Opening Limit Microswitch

• 1 x Multifunction Control Panel for Gates with Two Swing Leaves

• 2 x CAME TOP 432EE Remote Control

• 1 x CAME KIARO Flashing Light

• 1 x CAME DELTA DIR Photocell Sensors

• 2 x Wall Fixing Bracket

• 1 x Push Button

Why Choose IGTS Technical Services?

IGTS Technical Services is the #1 company for CAME swing gate motor installation in Dubai and UAE. We provide professional installation, repair, and maintenance for swing gates. Get the best CAME swing gate motor near you for secure and efficient automation.
