CAME BK 1800 KG

Description

The CAME BK 1800 KG Sliding Gate Motor, available from IGTS Technical Services UAE, is a robust Italian-made solution designed for heavy-duty sliding gates in Dubai, Sharjah, Ajman, and Abu Dhabi. Engineered for gates weighing up to 1800 kg and measuring up to 20 meters, this sliding gate motor provides powerful, precise, and reliable automation for large residential and commercial properties.

High-Performance Operation

The CAME BK 1800 motor is available with 4 or 6 pinion modules, offering flexibility for varying gate sizes and weights. Its electromechanical design ensures smooth and reliable movement while maintaining a long service life. Capable of a traction force of 1150 N and a speed of 10.5 m/min, it guarantees efficient gate operation even under intensive use.

Intelligent Safety Features

Equipped with self-diagnosing safety devices, the CAME BK 1800 protects both users and property. Safety inputs can be configured to control 8k2Ω resistive sensitive-safety edges, while integrated limit switches manage both opening and closing operations. The control board supports storage for up to 250 users and allows installation of magnetic limit switches for precise operation. The motor also features self-locking and thermal protection up to 150°C, ensuring safe and dependable automation.

Easy Installation and Smart Design

Installation is simplified with the included integrated control unit, remote controls, and photocells. The motor supports paired connection for dual-gate setups and comes with a blinker light and push button for added convenience. The durable construction and IP54 protection rating ensure resistance against dust and harsh weather conditions, making it suitable for outdoor installations across the UAE.

Technical Specifications:

• Maximum Gate Weight: 1800 Kg

• Maximum Leaf Length: 20 m

• Pinion Module: 4 or 6

• Motor Voltage: 230V AC

• Current Draw: 4.2 A

• Max Power: 480 W

• Traction Force: 1150 N

• Speed: 10.5 m/min

• Duty Cycle: 50%

• Protection Rating: IP54

• Operating Temperature: -20°C to +50°C

• Self-locking: Yes

• Limit Switches: Yes, for opening and closing

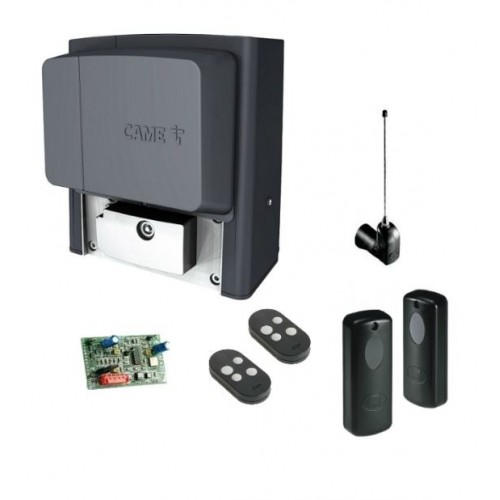

CAME BK 1800 KG Kit Includes:

• 1 x CAME BK 1800 Sliding Gate Motor

• 1 x Integrated Control Unit

• 2 x Remote Controls

• 1 x Pair of Bluebus Photocells

• 1 x Remote Receiver

• 1 x Blinker Light

• 1 x 4m Nylon Rack

• 1 x Push Button
