CAME BK 2200 KG

Description

The CAME BK 2200 KG Sliding Gate Motor, available from IGTS Technical Services UAE, is a premium Italian-made solution for automating very large sliding gates in Dubai, Sharjah, Ajman, and Abu Dhabi. Designed for gates weighing up to 2200 kg and measuring up to 20 meters, this sliding gate motor ensures reliable, safe, and smooth operation for residential and commercial properties requiring heavy-duty automation.

Powerful and Efficient Operation

The CAME BK 2200 motor is available with 4 or 6 pinion modules, providing flexibility for different gate sizes and weights. Its electromechanical design ensures precise gate movement while maintaining long-term durability. With a high traction force and robust motor construction, this sliding gate motor guarantees efficient operation even under intensive usage conditions.

Intelligent Safety Features

Safety is at the core of the CAME BK 2200 design. The motor includes self-diagnosing safety devices, and the safety inputs can be configured to directly control 8k2Ω resistive sensitive-safety edges. It features a control board capable of storing up to 250 users and supports installation of magnetic limit switches for precise gate control. The motor’s self-locking function ensures secure gate positioning, while integrated limit switches manage both opening and closing operations.

Easy Installation and User Convenience

The motor comes with an integrated control unit, remote controls, and a pair of Bluebus photocells for simplified installation. It supports paired connection for dual-gate setups and comes with a blinker light, push button, and 4m nylon rack for complete convenience. Its durable construction and IP54 protection rating ensure resistance to dust and harsh UAE weather conditions.

Technical Specifications:

• Maximum Gate Weight: 2200 Kg

• Maximum Leaf Length: 20 m

• Pinion Module: 4 or 6

• Motor Voltage: 230V AC

• Traction Force: 1400–1500 N approx.

• Speed: 10 m/min

• Protection Rating: IP54

• Operating Temperature: -20°C to +50°C

• Self-locking: Yes

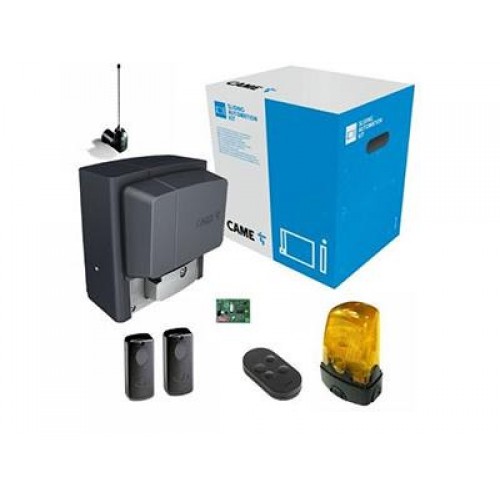

CAME BK 2200 KG Kit Includes:

• 1 x CAME BK 2200 Sliding Gate Motor

• 1 x Integrated Control Unit

• 2 x Remote Controls

• 1 x Pair of Bluebus Photocells

• 1 x Remote Receiver

• 1 x Blinker Light

• 1 x 4m Nylon Rack

• 1 x Push Button
