CAME BKV 2500 KG

Description

The CAME BKV 2500 KG Sliding Gate Motor, available from IGTS Technical Services UAE, is a premium industrial-grade Italian sliding gate motor designed for very large gates in Dubai, Sharjah, Ajman, and Abu Dhabi. This powerful motor is engineered to operate gates weighing up to 2500 kg and with a leaf length of up to 20 meters, making it ideal for commercial, industrial, and high-traffic residential applications.

Robust and Reliable Operation

The CAME BKV 2500 motor features a 36V industrial-grade design with IP54 protection, ensuring durability and reliable operation under harsh environmental conditions. Equipped with Adaptive Speed and Torque Technology, the motor guarantees smooth, consistent movements over time, reducing mechanical stress and wear. This makes it suitable for continuous-duty applications, handling frequent openings and closings with ease.

Intelligent Safety Features

Safety is a priority in the CAME BKV 2500 KG design. The motor has four configurable safety inputs for direct management of resistive safety edges, allowing precise control of potential obstacles. Its integrated control system with graphical display enables easy programming of operational parameters. Self-diagnosis and monitoring features help maintain optimal performance while ensuring compliance with safety standards.

Easy Installation and User Convenience

This sliding gate motor is user-friendly and designed for easy setup. Its powerful motor combined with adaptive technology allows smooth automation even for the heaviest gates. The motor can be paired with remote controls, photocells, and optional accessories for full automation and safety compliance. With its robust design and advanced technology, the CAME BKV 2500 ensures long-term reliability and low maintenance needs.

Technical Specifications:

• Maximum Gate Weight: 2500 Kg

• Maximum Leaf Length: 20 m

• Motor Voltage: 36V

• Power Supply: 230V AC (50/60 Hz)

• Power: 300 W

• Absorption: 10 A

• Thrust: 1000 N

• Maneuvering Speed: 12 m/min

• Protection Rating: IP54

• Use: Continuous Duty

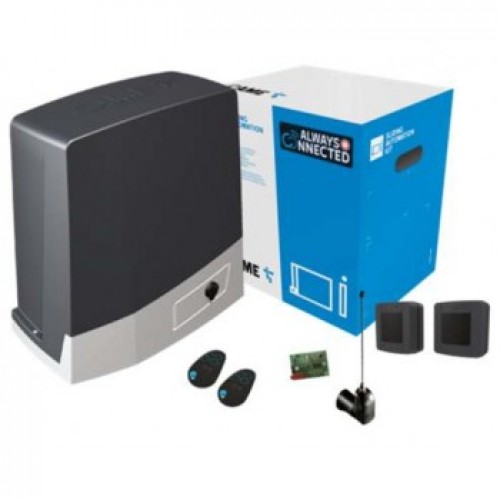

CAME BKV 2500 KG Kit Includes:

• 1 x CAME BKV 2500 Sliding Gate Motor

• 1 x Integrated Control Unit with Graphical Display

• 2 x Remote Controls (optional, configurable)

• 1 x Pair of Photocells (optional)

• 1 x Remote Receiver

• 1 x Blinker Light

• 1 x 4m Nylon Rack

• 1 x Push Button
