FAAC 740 500 KG

Description

The FAAC 740 500 KG Sliding Gate Motor, available from IGTS Technical Services UAE, is a high-quality 230V electromechanical gearmotor designed for sliding gates weighing up to 500 kg. Made in Italy, this motor is ideal for residential and light commercial gates across Dubai, Sharjah, Ajman, and Abu Dhabi. Customers searching for a sliding gate motor near me can rely on IGTS Technical Services, the #1 company and one of the best companies in the UAE for reliable gate automation.

Powerful and Precise Operation

The FAAC 740 500 KG motor features a maximum speed of 12 m/min and a maximum leaf width of 15 m, delivering smooth and precise movements. Its optical encoder and integrated magnetic limit switch ensure accurate positioning and safe operation. Additionally, the motor includes an integrated encoder with reverse function, automatically reversing the gate if it detects an obstacle.

Advanced Safety and Control

The FAAC 740 500 KG comes with the 740D electronic control unit, which simplifies programming via the display and prewired setup. The control unit allows electronic force adjustment and precise management of gate opening, closing, and slowdown functions. Thermal protection up to 140°C and IP44 protection guarantee reliable performance under various weather conditions, from -20°C to +55°C.

Complete Installation Kit

IGTS Technical Services provides the FAAC 740 500 KG as a full kit for quick and reliable installation. The kit includes all essential accessories for safe and smooth operation, including a gear motor, remote controls, photocells, flashing light, push button, and nylon rack.

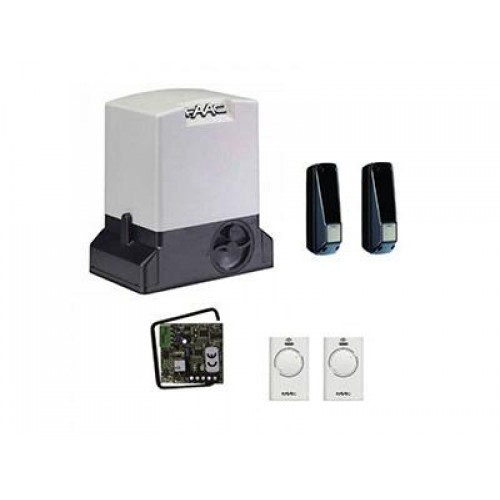

FAAC 740 500 KG Kit Includes:

• 1 x FAAC 740 E Z16 Gearmotor with electronic control unit and integrated encoders

• 4 x Nylon Rack 1 meter

• 1 x Plug-in Receiver 1 channel RP 433 SLH

• 1 x XLED Flashing Light

• 1 x Lock with Key

• 1 x Pair of Photocells XP 20D

• 1 x 2-channel Transmitter XT2 433 SLH LR

• 1 x Push Button

FAAC 740 500 KG Specifications:

• Maximum Gate Weight: 500 kg

• Maximum Speed: 12 m/min

• Motor Voltage: 220-240V 50/60 Hz

• Motor Type: Asynchronous Single Phase

• Maximum Torque: 18 Nm

• Maximum Expressed Force: 450 N

• Reduction Ratio: 1:25

• Limit Switch: Magnetic

• Encoder: Optical Encoder

• Force Adjustment: Via Electronic Control Board

• Thermal Protection: 140°C

• Protection Class: IP44

• Operating Temperature: -20°C to +55°C

• Weight: 10 kg

• Use Frequency: S3 – 30%
