MARANTEC COMFORT 260

Description

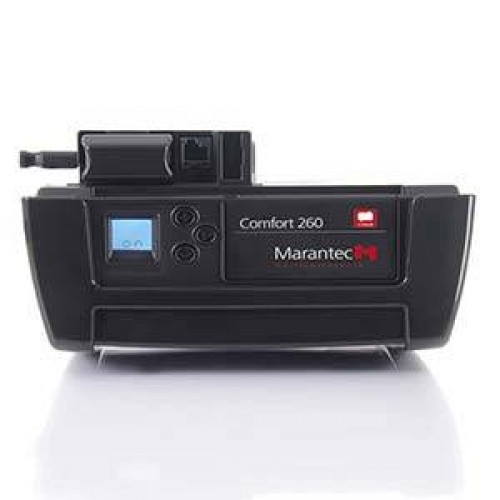

MARANTEC COMFORT 260 Garage Door Operator – Advanced Door Automation in UAE – IGTS Technical Services

The MARANTEC COMFORT 260 represents the pinnacle of German engineering in garage door automation, offering sophisticated technology for residential properties across Dubai, Abu Dhabi, Sharjah, and the entire UAE. Part of the acclaimed Comfort 200 series featuring 5th generation opener technology, this operator is specifically designed for light doors up to 90kg. With highly sensitive obstacle detection, LED lighting, and a control system that’s easy on your door, the Comfort 260 ensures smooth, safe, and reliable operation for swing, overhead, and sectional doors with precision German craftsmanship.

Key Features of MARANTEC COMFORT 260 Garage Door Operator

• Series: Comfort 200 Series with 5th Generation Technology

• Max Door Weight: 90kg

• Compatible Doors: Swing, overhead, canopy, and sectional doors

• Safety: Highly sensitive obstacle detection

• Lighting: Advanced 8-LED module

• Technology: 868 MHz bi.linked digital communication

• Expandability: Optional battery backup available

• Speed: Maximum running speed of 16 cm/s

• Quality: German engineering and manufacturing

Technical Specifications

• Force: 550N maximum tensile and compressive force

• Voltage: 230V operating voltage

• Frequency: 868 MHz bi.linked technology

• Cycles: 16 cycles per day maximum

• Speed: 16 cm/s maximum running speed

• Illumination: 8-LED module

Scope of Operation

• Overhead Doors: Up to 3.5m width

• Tipping & Canopy Gates: Up to 3.5m width × 2.25m height

• Single-wall Sectional Doors: Up to 5.0m width

• Double-walled Sectional Doors: Up to 3.5m width

Complete MARANTEC COMFORT 260 Kit Includes

• 1 x Motor unit with integrated control

• 1 x Digital 921 Module receiver (868 MHz bi.linked)

• 2 x Digital 382 handheld transmitters (2-channel, 868 MHz)

• 1 x Universal installation set for up-and-over and sectional doors

• 1 x Mains cable with Euro plug type C (1,500 mm)

• 1 x Pair of photocells for safety detection
