MARANTEC COMFORT 270

Description

MARANTEC COMFORT 270 Garage Door Operator – Premium Automation for Larger Doors in UAE – IGTS Technical Services

The MARANTEC COMFORT 270 delivers advanced German engineering for medium to large garage doors, providing exceptional performance for residential and commercial properties across Dubai, Abu Dhabi, Sharjah, and the entire UAE. As part of the renowned Comfort 200 series with 5th generation technology, this robust operator handles doors up to 165kg with a powerful 750N force. Designed for sectional doors up to 5.5m width and overhead doors up to 5.0m, the Comfort 270 features highly sensitive obstacle detection, energy-efficient LED lighting, and reliable 868MHz bi.linked technology for secure, seamless operation.

Key Features of MARANTEC COMFORT 270 Garage Door Operator

• Series: Comfort 200 Series with 5th Generation Technology

• Max Door Weight: 165kg

• Max Door Width: 5.5m for sectional doors

• Force: 750N maximum tensile and compressive force

• Safety: Highly sensitive obstacle detection system

• Lighting: Advanced 8-LED module illumination

• Technology: 868 MHz bi.linked digital communication

• Speed: 16 cm/s maximum running speed

• Durability: 28 cycles per day capacity

• Expandability: Optional battery backup available

Technical Specifications

• Model: MARANTEC COMFORT 270 (183501)

• Operating Voltage: 230V

• Frequency: 868 MHz bi.linked

• Cycles: 28 cycles per day maximum

• Speed: 16 cm/s maximum running speed

• Illumination: 8-LED module

Scope of Operation

• Sectional Doors: Up to 5.5m width (single and double-walled)

• Overhead Doors: Up to 5.0m width

• Tipping & Canopy Gates: Up to 5.0m width × 2.25m height

• Maximum Weight: 165kg

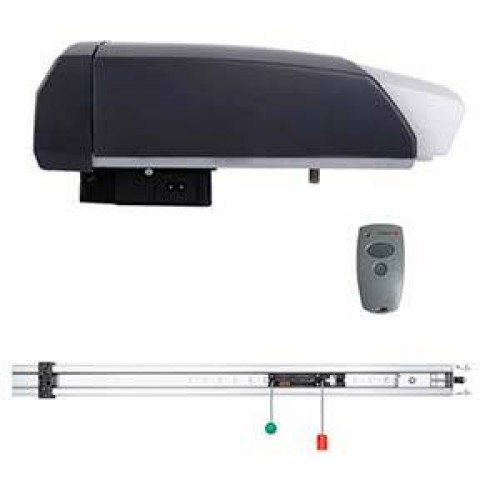

Complete MARANTEC COMFORT 270 Kit Includes

• 1 x Motor unit with integrated control

• 1 x Digital 921 Module receiver (868 MHz bi.linked)

• 2 x Digital 382 handheld transmitters (2-channel, 868 MHz)

• 1 x Universal installation set for up-and-over and sectional doors

• 1 x Mains cable with Euro plug type C (1,500 mm)

• 1 x Pair of safety photocells
