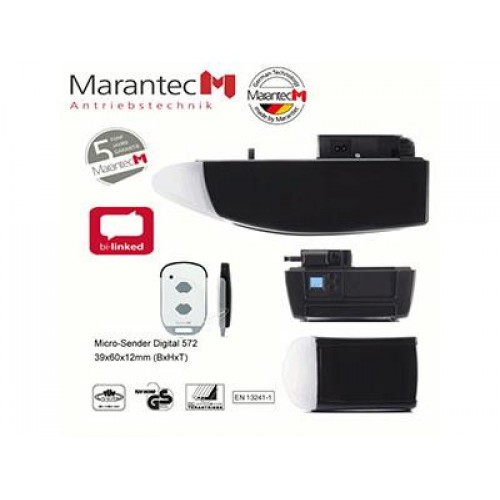

Marantec Comfort 280

Description

MARANTEC COMFORT 280 Garage Door Operator – Heavy-Duty German Automation in UAE – IGTS Technical Services

The MARANTEC COMFORT 280 represents the peak of German engineering for large, heavy-duty garage doors, delivering uncompromising performance for commercial and residential properties across Dubai, Abu Dhabi, Sharjah, and the entire UAE. As the most powerful model in the acclaimed Comfort 200 series, this operator features 5th generation technology with a massive 1000N force to handle doors up to 200kg and 6.0m width. With industrial-grade durability rated for 48 cycles daily, highly sensitive obstacle detection, and advanced 868MHz bi.linked technology, the Comfort 280 ensures reliable, secure operation for the most demanding applications.

Key Features of MARANTEC COMFORT 280 Garage Door Operator

• Series: Comfort 200 Series with 5th Generation Technology

• Max Door Weight: 200kg heavy-duty capacity

• Max Door Width: 6.0m for all door types

• Force: Powerful 1000N tensile and compressive force

• Durability: 48 cycles per day maximum capacity

• Safety: Highly sensitive obstacle detection system

• Lighting: Advanced 8-LED module illumination

• Technology: 868 MHz bi.linked digital communication

• Speed: 16 cm/s controlled running speed

• Reliability: German engineering for demanding use

Technical Specifications

• Model: MARANTEC COMFORT 280 (183503)

• Operating Voltage: 230V

• Frequency: 868 MHz bi.linked technology

• Cycles: 48 cycles per day maximum

• Speed: 16 cm/s maximum running speed

• Illumination: 8-LED module

• Force: 1000N maximum

Scope of Operation

• All Door Types: Up to 6.0m width

• Sectional Doors: 6.0m width (single and double-walled)

• Overhead Doors: Up to 6.0m width

• Tipping & Canopy Gates: Up to 6.0m width × 2.25m height

• Maximum Weight: 200kg

Complete MARANTEC COMFORT 280 Kit Includes

• 1 x Motor unit with integrated control

• 1 x Digital 921 Module receiver (868 MHz bi.linked)

• 2 x Digital 382 handheld transmitters (2-channel, 868 MHz)

• 1 x Universal installation set for up-and-over and sectional doors

• 1 x Mains cable with Euro plug type C (1,500 mm)

• 1 x Pair of safety photocells
