ROGER G30 1800 KG

3,399.00 AED

The ROGER G30 1800 KG Sliding Gate Motor from IGTS Technical Services UAE is a 230V electromechanical motor for gates up to 1800 kg, featuring optical encoder, magnetic limit switch, and full installation kit.

Description

The ROGER G30 1800 KG Sliding Gate Motor, available from IGTS Technical Services UAE, is a robust electromechanical motor designed for sliding gates weighing up to 1800 kg. Manufactured in Italy, this motor is perfect for residential, commercial, and multi-user properties in Dubai, Sharjah, Ajman, and Abu Dhabi, ensuring reliable, precise, and safe gate automation.

High-Performance Motor

Operating on 230V AC, the G30 motor features an irreversible electromechanical design with a built-in H70/104AC control unit. Its optical encoder guarantees precise positioning, while the magnetic limit switch ensures safe and accurate stops during gate movement. With a thrust of 1200 N and a manoeuvre speed of 9.5 m/min, the motor provides smooth and controlled opening and closing of large sliding gates.

Safety and Intelligent Operation

The ROGER G30 1800 KG motor is equipped with thermal protection up to 150°C, safeguarding the motor from overheating. It operates reliably in temperatures from -20°C to +55°C and has an IP44 protection rating for resistance against dust and water. The optical encoder, combined with the control unit, allows precise gate management, enhancing user safety and smooth operation.

Complete Installation Kit

The ROGER G30 1800 KG comes as a full installation kit, including two ROGER E80 remote controls, R90 photocell sensors, a blinker light, 4 meters of nylon rack, and a push button. This ensures all necessary accessories are provided for quick and hassle-free installation, making it ideal for residential, commercial, and multi-user setups.

Technical Specifications

  • Maximum Gate Weight: 1800 Kg

  • Motor Supply: 230V AC

  • Power Rating: 520 W

  • Frequency of Use: 50%

  • Thrust: 1200 N

  • Operating Temperature: -20°C to +55°C

  • Protection Level: IP44

  • Reductor Type: Irreversible

  • Manoeuvre Speed: 9.5 m/min

  • Motor Thermal Protection: 150°C

  • Encoder: Optical

  • Limit Switch: Magnetic

  • Type Exit Gear: Z17/mod 4

  • Product Dimensions (L x W x H): 346 x 180 x 362 mm

  • Product Weight Packed: 19.5 Kg

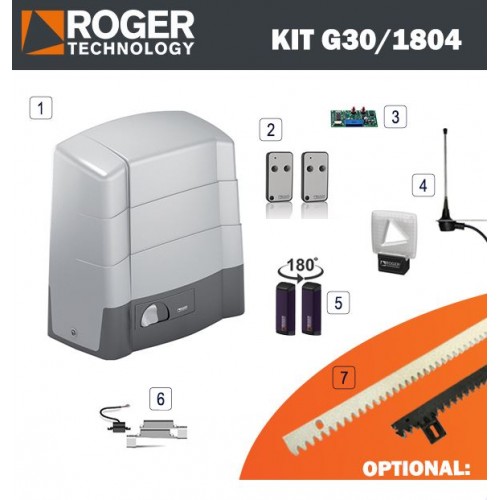

ROGER G30 Kit Includes

1 x ROGER G30 1800 Kg Sliding Gate Motor
2 x ROGER E80 Remote Controls
1 x ROGER R90 Photocell Sensors
1 x ROGER Blinker Light
4 x Nylon Rack 1m
1 x Push Button
