ROGER M30/326 400 KG

Description

The ROGER M30/326 400 KG Sliding Gate Motor, available from IGTS Technical Services UAE, is a high-quality Italian-made motor designed for sliding gates weighing up to 400 kg. Ideal for residential properties and small commercial gates in Dubai, Sharjah, Ajman, and Abu Dhabi, this motor delivers smooth, reliable, and precise gate automation.

Robust and Reliable Motor

This ROGER sliding gate motor is an electromechanical, 230V AC irreversible motor featuring an integrated H70/104AC control unit and optical encoder for precise positioning. With a mechanical limit switch and a thrust of 300N, it ensures safe and controlled gate movements. The motor is suitable for gates with moderate weight and width, offering a manoeuvre speed of 9.5 m/min for efficient operation.

Safe and Efficient Operation

Designed for long-lasting performance, the ROGER M30/326 is equipped with thermal protection up to 150°C and can operate in temperatures ranging from -20°C to +55°C. Its IP44 protection rating safeguards the motor against dust and water ingress, ensuring reliable operation in various weather conditions. The built-in encoder and control unit provide precise movement tracking and obstacle detection, enhancing the safety of your sliding gate.

Complete Installation Kit

The ROGER M30/326 comes as a complete kit for easy installation. It includes a pair of remote controls, photocell sensors, a blinker light, 4 meters of nylon rack, push button, and a fixing plate. This ensures a hassle-free setup and immediate functionality without needing additional accessories.

Technical Specifications

• Maximum Gate Weight: 400 Kg

• Motor Supply: 230V AC

• Power Rating: 240 W

• Frequency of Use: 50%

• Thrust: 300 N

• Operating Temperature: -20°C to +55°C

• Protection Level: IP44

• Reductor Type: Irreversible

• Manoeuvre Speed: 9.5 m/min

• Motor Thermal Protection: 150°C

• Encoder: Optical

• Limit Switch: Mechanical

• Product Dimensions (L x W x H): 315 x 165.8 x 329 mm

• Product Weight: 12.3 Kg

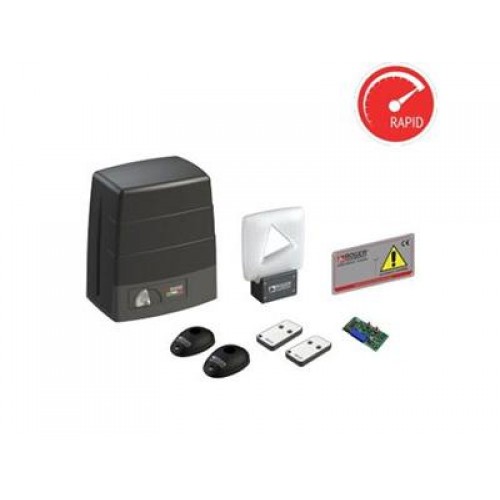

ROGER M30/326 Kit Includes

1 x ROGER M30 400 Kg Sliding Gate Motor
2 x ROGER E80 Remote Controls
1 x ROGER R90 Photocell Sensors
1 x ROGER Blinker Light
4 x Nylon Rack 1m
1 x Push Button
1 x Fixing Plate
