ROGER R30 800 KG

Description

The ROGER R30 800 KG Sliding Gate Motor, available from IGTS Technical Services UAE, is a robust Italian-made electromechanical motor designed for sliding gates weighing up to 800 kg. Perfect for residential and small commercial applications in Dubai, Sharjah, Ajman, and Abu Dhabi, this motor provides precise, reliable, and quiet gate automation.

Powerful and Reliable Motor

This ROGER sliding gate motor operates on 230V AC and features an irreversible electromechanical design with a built-in H70/104AC control unit and optical encoder. The mechanical limit switch ensures precise stopping points, while the motor delivers a thrust of 500 N and a manoeuvre speed of 9.5 m/min, providing smooth and safe operation for gates up to 800 kg. Its IP44 protection rating ensures resistance against dust and water ingress.

Safe and Intelligent Operation

Designed for safety and reliability, the R30 motor includes thermal protection up to 150°C, allowing consistent performance even in extreme temperatures from -20°C to +55°C. The optical encoder ensures accurate movement control, while the built-in control unit allows for easy programming and maintenance. The irreversible design adds extra safety by preventing back-driving of the gate.

Complete Installation Kit

The ROGER R30 800 KG comes as a full kit for hassle-free installation. Included are two ROGER E80 remote controls, R90 photocell sensors, a blinker light, 4 meters of nylon rack, push button, and fixing plate. This ensures that all essential components are included for immediate and smooth gate automation.

Technical Specifications

• Maximum Gate Weight: 800 Kg

• Motor Supply: 230V AC

• Power Rating: 350 W

• Frequency of Use: 50%

• Thrust: 500 N

• Operating Temperature: -20°C to +55°C

• Protection Level: IP44

• Reductor Type: Irreversible

• Manoeuvre Speed: 9.5 m/min

• Motor Thermal Protection: 150°C

• Encoder: Optical

• Limit Switch: Mechanical

• Type Exit Gear: Z17/mod 4

• Product Dimensions (L x W x H): 325 x 162 x 295 mm

• Product Weight Packed: 15.9 Kg

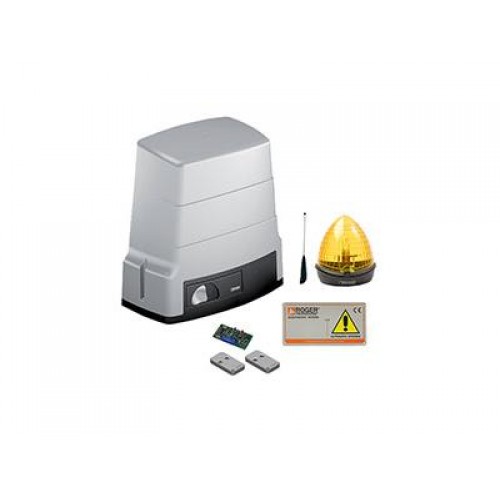

ROGER R30 Kit Includes

1 x ROGER R30 800 Kg Sliding Gate Motor
2 x ROGER E80 Remote Controls
1 x ROGER R90 Photocell Sensors
1 x ROGER Blinker Light
4 x Nylon Rack 1m
1 x Push Button
1 x Fixing Plate
