SOMMER 400 KG

1,890.00 AED

The SOMMER 400 KG Sliding Gate Motor from IGTS Technical Services UAE is a 230V residential motor for gates up to 400 kg, featuring integrated control, 4-command remote, and smooth, safe operation.

Description

SOMMER 400 KG Sliding Gate Motor

The SOMMER 400 KG Sliding Gate Motor, available from IGTS Technical Services UAE, is a high-quality residential motor designed for sliding gates weighing up to 400 kg. Ideal for homes and small commercial properties in Dubai, Sharjah, Abu Dhabi, and the UAE, this motor provides precise, reliable, and safe automation for your sliding gate.

High-Performance Motor and Smooth Operation

The SOMMER STARTER 400Kg motor comes with a motor control unit featuring an integrated radio receiver operating at FM 868.8 MHz Somloq Rollingcode. This ensures secure and interference-free communication between the motor and remote transmitters. With a maximum opening speed of 240 mm/s and a torque of 11 Nm, the motor offers smooth and fast operation, making everyday gate use effortless.

Safety and Reliability

Safety is built into every aspect of the SOMMER 400 KG motor. The unit includes a universal mounting base plate for stable installation, sturdy 4 m plastic rack with steel core (expandable up to 8 m), and the ability to store up to 112 radio memory positions. Its integrated control ensures precise movement and provides secure operation even in extreme weather conditions, with a working temperature range of -20°C to +50°C and an IP54 protection rating.

Complete Kit for Easy Installation

The SOMMER 400 KG kit includes everything needed for fast and simple installation: a Classic 4-command handheld transmitter, mounting materials, and a motor pre-configured for reliable operation. This all-in-one solution minimizes setup time while providing long-lasting durability and efficient gate control.

Technical Specifications

  • Maximum Gate Weight: 400 Kg

  • Maximum Movement Range: 8000 mm

  • Maximum Torque: 11 Nm

  • Max Opening Speed: 240 mm/s

  • Radio Frequency: 868.8 MHz Somloq

  • Number of Remote Positions: 112

  • IP Code: IP54

  • Protection Class: I

  • Operating Temperature: -20°C to +50°C

  • Duty Cycle: ED 30% S3

  • Weight: 15.7643 kg

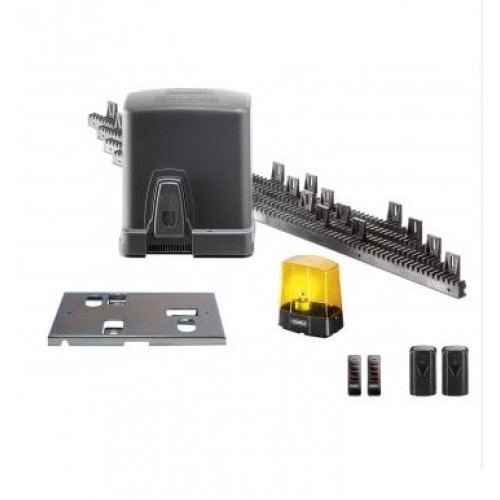

SOMMER 400 KG Kit Includes

1 x SOMMER STARTER 400 Kg Motor with Integrated Control Unit
1 x Universal Mounting Base Plate (H = 15 mm)
4 x “Classic” Handheld Transmitters (#4020V000)
4 m Plastic Rack with Steel Core (Expandable to 8 m)
Mounting Materials
