Description
SOMMER STARTER 400 KG Sliding Gate Motor
The SOMMER STARTER 400 KG Sliding Gate Motor, available from IGTS Technical Services UAE, is a high-quality Italian-made motor designed for sliding gates weighing up to 400 kg. This motor is ideal for residential properties and small commercial applications in Dubai, Sharjah, Abu Dhabi, and across the UAE. It ensures smooth, reliable, and safe automation while being easy to install.
Premium Performance and Precision
The SOMMER STARTER 400 KG features the STArter S2+ system, designed for precise gate operation. With a maximum opening speed of 240 mm/s and torque of 11 Nm, the motor delivers smooth and consistent movement. It comes with SOMloq2 technology, ensuring secure and interference-free communication with remote controls. The motor’s integrated control unit allows efficient management of gate movement while ensuring reliable performance in everyday use.
Safety and Reliability
Built with safety in mind, the SOMMER STARTER 400 KG includes features such as electronic brake, gradual start, and soft-stop functionality. Its integrated system ensures controlled acceleration and deceleration for safer operation. The motor has an IP54 protection rating and works in a wide temperature range of -20°C to +50°C, making it suitable for all weather conditions. The duty cycle is rated at ED 30% S3, ensuring consistent operation over time.
Complete Kit for Easy Installation
This motor comes as a complete kit, including everything required for quick and easy installation. The kit includes a flashing light, pair of photocells, push button, two remote controls, and a fixing bracket. The 8 m maximum travel length and Modul 4 / 19 Zähne gear ensure compatibility with most residential sliding gates.
Technical Specifications
-
Maximum Gate Weight: 400 Kg
-
Max Travel Length: 8000 mm
-
Max Torque: 11 Nm
-
Max Opening Speed: 240 mm/s
-
Radio Frequency: 868.950 MHz SOMloq2
-
Memory Locations for Radio: 40
-
IP Protection: IP54
-
Protection Class: II
-
Operating Temperature: -20°C to +50°C
-
Duty Cycle: ED 30% S3
-
Gear Dimension: Modul 4 / 19 Zähne
-
Package Size: 1040x350x280 mm

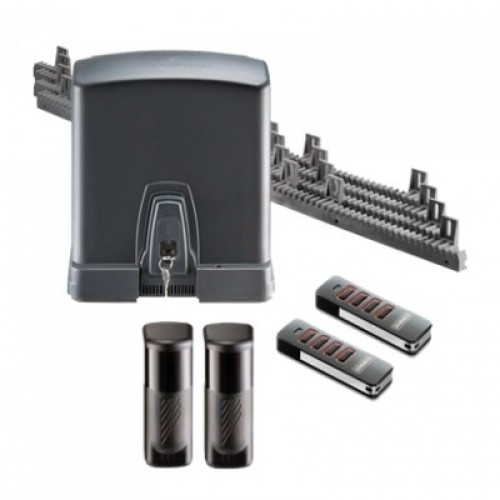

SOMMER 400 Kg Kit Includes
1 x SOMMER 400 Kg Sliding Gate Motor
1 x Flashing Light
2 x Remote Controls
1 x Pair of Photocells
1 x Push Button
1 x Fixing Bracket
