BENINCA BULL624SW

Description

The BENINCA BULL624SW Sliding Gate Motor, available from IGTS Technical Services UAE, is a powerful and reliable solution for residential and intensive-use sliding gates in Dubai, Sharjah, Ajman, and Abu Dhabi. Designed for gates weighing up to 600 kg, this 24 Vdc geared motor combines high performance, precision automation, and durable construction to ensure smooth and safe operation.

Efficient and Powerful Performance

The BULL624SW features a 24 Vdc gear motor designed for intensive use. Its virtual encoder allows precise management of slowing-down phases, gate position tracking (STC system), and torque control. This guarantees maximum safety and smooth operation for gates of varying sizes and weights.

Intelligent Safety Features

Safety is a priority with the BENINCA BULL624SW. It includes an anti-crushing system with amperometric obstacle detection, ensuring safe operation even when obstacles are present. The motor can continue functioning during power outages thanks to its optional integrated batteries (2 x 1.2 Ah). The actuator is compatible with KNX domotics via the X.BE accessory and can be programmed through the BeUP app and PRO.UP interface, providing modern smart home integration.

Convenient and Reliable Design

The motor comes with a built-in control unit, integrated receiver, magnetic limit switches, and a compact, lightweight design of 8 kg. The switching power supply (115/230 Vac) reduces energy consumption and prolongs the lifespan of the motor. With a duty cycle for intensive use and IP44 protection, the BULL624SW is highly durable and reliable for daily operation.

Technical Specifications:

• Maximum Gate Weight: 600 Kg

• Motor Supply: 24 Vdc

• Power Supply: 230 Vac (50-60Hz)

• Maximum Thrust: 715 N

• Opening Speed: 5.5 ÷ 11 m/min

• Duty Cycle: Intensive use

• Protection Level: IP44

• Operating Temperature: -20°C / +50°C

• Weight: 8.0 kg

• Kit Weight: 8.5 kg

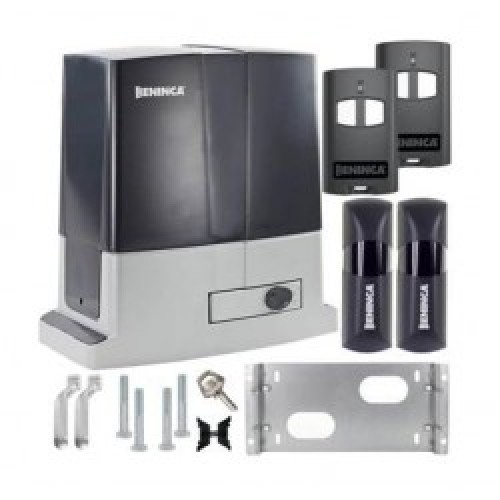

BENINCA BULL624SW Kit Includes:

• 1 x BULL624SW 24 Vdc Gear Motor for Intensive Use

• 1 x PUPILLA.T Pair of Adjustable Photocells

• 1 x LAMPY Flashing Light 12 ÷ 255 Vac

• 1 x TO.GO2VA 2-Channel 433.92 MHz Transmitter

• 4 x Nylon Rack

• 1 x Push Button
