CENTURION D5 EVO

Description

The CENTURION D5 EVO Sliding Gate Motor, available from IGTS Technical Services UAE, is a high-performance 24V industrial motor designed for sliding gates weighing up to 500 kg. Perfect for residential, commercial, and light-industrial gates, this motor combines advanced automation, intelligent speed control, and battery backup, making it one of the best sliding gate motors in Dubai, Sharjah, Ajman, and Abu Dhabi. For customers searching for a sliding gate motor near me, IGTS Technical Services is the #1 company and one of the best companies in the UAE for gate automation.

Powerful and Smooth Operation

The D5 EVO provides smooth acceleration and deceleration, ensuring gentle and controlled gate movements. Its push force is rated at 17 kgf, allowing the gate to reach speeds of up to 22 m/min under light load and 18 m/min at rated push force. The motor’s intelligent design allows high duty cycle capability, making it ideal for gates with frequent operations.

Smart Features and Safety

This motor comes with multiple operating features, including Intruder-Detection Alarm Modes, a world-first innovation in gate automation. It features an onboard CENTURION code-hopping multichannel receiver, capable of storing up to 500 transmitter buttons, and allows easy selective add/delete of transmitters. The LCD user interface simplifies system setup, providing a user-friendly configuration process.

Reliable Battery Backup

The D5 EVO runs on a 12V DC battery, supported by a 2A charger, ensuring reliable operation even during power outages. With a duty cycle of 50% (up to 150 operations/day) or 20% (up to 55 operations/day) depending on mains presence, this motor ensures maximum reliability for residential and industrial gates.

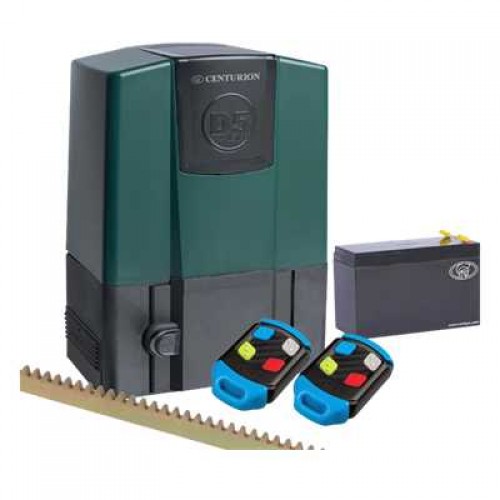

CENTURION D5 EVO Kit Includes:

• 1 x CENTURION D5 EVO Sliding Gate Motor

• Built-in CENTURION code-hopping multichannel receiver

• All required installation accessories

Technical Specifications:

• Input Voltage: 90 – 240V AC, 50Hz

• Motor Voltage: 12V DC (Battery-driven)

• Push Force Rated: 17 kgf

• Gate Speed (Light Load <5kgf): 22 m/min

• Gate Speed (Rated Force): 18 m/min

• Maximum Gate Weight: 500 kg

• Duty Cycle (Mains Present): 50% / 150 Operations per day

• Duty Cycle (Battery Only): 20% / 55 Operations per day

• Receiver Type: CENTURION code-hopping multichannel 433 MHz

• Transmitter Capacity: 500 Buttons

• Protection Level: IP44
