FAAC 415 230V

Description

FAAC 415 230V Swing Gate Motor in Dubai – Reliable Electromechanical Automation by IGTS Technical Services

The FAAC 415 230V Swing Gate Motor is a high-performance electromechanical operator designed for residential and light commercial swing gates. Ideal for gates up to 4 meters per leaf, it ensures smooth, safe, and durable operation. IGTS Technical Services provides expert installation across Dubai, Sharjah, Ajman, and Abu Dhabi, delivering efficient automation with advanced safety features.

Key Features of FAAC 415 230V Swing Gate Motor

• Suitable for single leaf gates 2.5–4 m wide

• Electromechanical “off-axis” thrust operator

• Opening and closing mechanical stops included

• Low installation capability with horizontal cable exit

• Durable and robust design

• Protection class: IP54

• Operating temperature: -20°C to +55°C

• Thermal protection: 140°C

• Weight: 7.8 Kg

Technical Specifications:

• Power Supply Voltage: 220–240V AC, 50/60 Hz

• Motor Type: Asynchronous single-phase

• Max Power: 300 W

• Max Expressed Force: 3000 N

• Rod Max Speed: 16 mm/s

• Rod Travel: 300 mm (400 mm without mechanical stops)

• Max Leaf Opening Angle: 110°

• Use Frequency: S3 – 30%

• Mounting Brackets: Rear attachment (welded/screwed)

• Dimensions (LxDxH): 836 x 101 x 147 mm

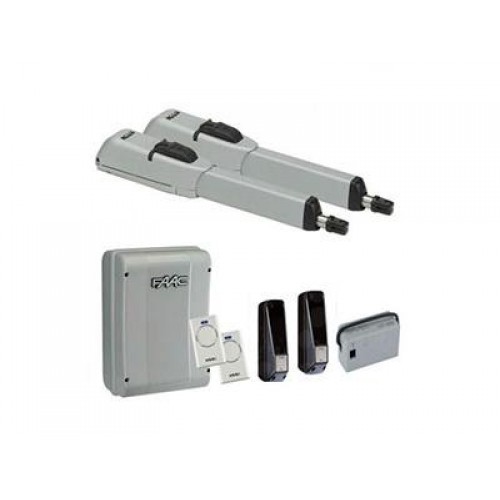

FAAC 415 Kit Includes:

• 2 x FAAC 415 Swing Gate Motor

• 1 x XLED flashing light

• 1 x Lock with key

• 1 x E045S Control Unit

• 1 x Enclosure mod. E for electronic control units

• 1 x XF 433 MHz receiver

• 1 x Pair of photocells XP 20 BD

• 1 x 2-channel transmitter XT2 433 SLH LR

• 1 x Push button
