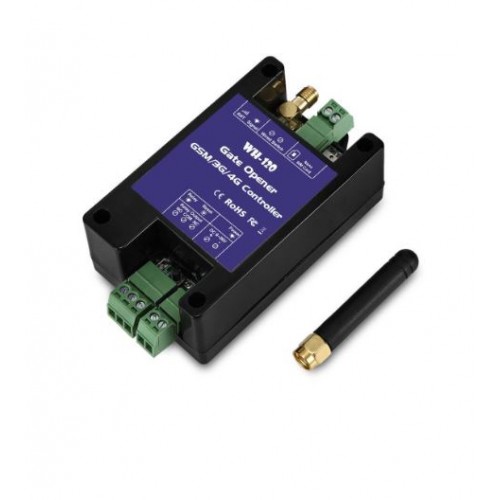

WH-120 3G GSM

Description

WH-120 3G GSM Gate Motor Dubai UAE – IGTS

The WH-120 3G/4G GSM Gate Motor delivers advanced cellular-controlled access solutions for automated gate systems throughout Dubai, Sharjah, Abu Dhabi, and the wider UAE. This innovative electric remote GSM door opener provides seamless telephone-based operation with easy SMS setup, eliminating distance limitations and offering unparalleled convenience for residential and commercial properties across the Emirates. Engineered with quad-band GSM compatibility and 3G/4G network support, this sophisticated GSM Gate Motor system represents the pinnacle of modern access control technology for the UAE market.

Featuring extensive user capacity for 200 numbers and versatile DC power operation from 9V to 36V, this professional GSM Gate Motor offers reliable performance in the region’s demanding environmental conditions. The compact 80×49×30mm design and minimal power consumption (max 50mA) make it ideal for various installation scenarios, while the robust relay specification (3A/250V AC, 20A/14V DC) ensures compatibility with multiple gate operator systems. This advanced GSM Gate Motor provides a comprehensive access solution that outperforms traditional keyfob systems in convenience and functionality.

KEY FEATURES

Technical Specifications

• Model: WH-120 3G/4G GSM

• Type: GSM Gate Motor Controller

• Application: Cellular-Controlled Gate Access

• Power Supply: DC 9V – 36V/1A

• Power Consumption: Max 50mA / Average 25mA

• User Capacity: 200 Numbers

• SIM Card: Nano Type, 3V

• Antenna: 50Ω SMA Connector

• Dimensions: 80×49×30mm

• Weight: 90g

Network Compatibility

• Quad-band GSM: 850/900/1800/1900MHz

• 3G WCDMA: 900/2100MHz UMTS

• 4G LTE Network Support

• Nano SIM Card Operation

• No Distance Limitations

• Cellular Network Communication

Performance Features

• Telephone Dial Operation

• SMS-Based Configuration

• No Monthly Phone Charges

• No Keyfobs Required

• Relay Time: 0-900 Seconds

• Operating Temperature: -10°C to 60°C

• Humidity Range: 10-90% RH

• Wired Switch Support

Installation Benefits

• Easy SMS Setup Process

• Versatile Power Supply Range

• Compact Design

• Low Power Consumption

• Multiple User Management

• Relay NO/NC Compatibility

• Professional Grade Components

• Weather-Resistant Operation

TECHNICAL EXCELLENCE

Advanced Cellular Network Integration

The WH-120 GSM Gate Motor features comprehensive network compatibility across GSM, 3G, and 4G spectrums, ensuring reliable operation throughout Dubai, Sharjah, and Abu Dhabi. The quad-band support and modern network technology provide seamless connectivity regardless of location, eliminating the distance limitations of traditional remote systems. This advanced cellular integration allows property owners to control their gate access from anywhere in the UAE using standard telephone calls to the installed Nano SIM card.

High-Capacity User Management

Engineered with extensive user management capabilities, this GSM Gate Motor supports up to 200 authorized numbers, making it ideal for residential communities, commercial complexes, and industrial facilities across the Emirates. The straightforward SMS-based configuration enables easy addition and removal of users without requiring physical access to the control unit. This scalability provides property managers with flexible access control that adapts to changing requirements while maintaining security standards.

Professional Installation and Reliability

Designed with versatile DC power operation (9V-36V) and compact dimensions, this professional GSM Gate Motor ensures straightforward installation and reliable performance in the UAE’s challenging climate conditions. The robust relay specifications and weather-resistant operation (-10°C to 60°C) guarantee consistent functionality despite temperature extremes and humidity variations. Installation professionals appreciate the flexible power requirements and comprehensive feature set that delivers professional results across diverse property types.

Cost-Effective Access Solution

Providing telephone-based operation without monthly charges or additional keyfobs, this innovative GSM Gate Motor offers a cost-effective alternative to traditional access control systems. The elimination of recurring fees and physical remote controls reduces long-term operational costs while providing superior convenience and functionality. This economic advantage, combined with advanced features, makes it an ideal choice for budget-conscious property owners throughout Dubai, Sharjah, and Abu Dhabi.
