BENINCA BILL40

Description

The BENINCA BILL40 Swing Gate Motor, available from IGTS Technical Services UAE, is designed for smooth and reliable automation of swing gates up to 3.5 meters per leaf. With its compact and sleek design, this motor perfectly suits wrought-iron or decorative gates used in villas, residential complexes, and commercial properties. For anyone searching for a Swing Gate Motor in Dubai, this model combines Italian engineering excellence with durability and style.

Robust Construction and Smart Design

The BILL40 motor features an irreversible 230 Vac electromechanical gear system, ensuring secure operation and preventing manual gate movement when locked. Its stainless steel stem and scraper ring protection provide superior resistance against dust, sand, and harsh UAE weather. The easy top-access release system allows smooth manual operation during power outages, making it ideal for consistent performance in all conditions.

Easy Installation and Reliable Operation

Thanks to its compact geometry, the BENINCA BILL40 is simple and quick to install, even in limited spaces. It is available in both left and right versions, making it suitable for a wide range of gate designs. Its quiet performance and steady movement ensure an effortless opening and closing experience for every user.

Complete Kit for Hassle-Free Setup

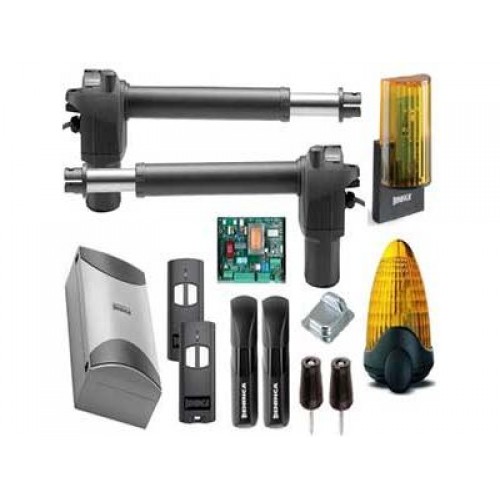

The BENINCA BILL40 Swing Gate Motor Kit from IGTS Technical Services includes:

• 2 × BILL40M 230 Vac operators

• 1 × HEADY 230 Vac control unit

• 1 × LAMPI.LED 230 Vac LED flashing light

• 1 × PUPILLA.R pair of photocells

• 2 × TO.GO remote controls

• 2 × Fixing brackets

• 1 × Exit push button

• 2 × Manual release keys

Technical Highlights

• Power supply: 230 Vac (50-60Hz)

• Max absorbed current: 1.1 A

• Maximum thrust: 2800 N

• Opening time: 18 seconds

• Stroke: 400 mm (max 420 mm)

• Duty cycle: 30%

• Protection level: IP54

• Encoder: No

• Lubrication: Grease

• Max leaf dimension: 3.5 m

• Operating temperature: -20°C to +50°C

With IGTS Technical Services, you can count on expert installation and support for the BENINCA BILL40 Swing Gate Motor in Dubai, Sharjah, and Abu Dhabi — the #1 company for reliable gate automation near you.
