BENINCA BOB50M

Description

BENINCA BOB50M Swing Gate Motor in Dubai – Strong & Reliable Automation

The BENINCA BOB50M Swing Gate Motor, available from IGTS Technical Services, is a premium-grade automation solution designed for swing gates up to 5 meters per leaf. This powerful Swing Gate Motor in Dubai delivers smooth, quiet, and consistent operation — ideal for both residential and commercial properties.

Powerful Performance & Reliable Design

The Beninca BOB50M Swing Gate Motor operates on 230 Vac and offers a maximum thrust of 2500 N, ensuring strong, stable movement for heavy-duty gates. With a 26-second opening time and irreversible geared motor, it guarantees safety and precision in every cycle.

Built for Longevity & Harsh Conditions

Constructed with rolled ball screws (Ø 20 mm) and a stainless steel stem, the BOB50M ensures durability even in dusty or sandy UAE environments. Its IP44 protection rating and grease lubrication make it suitable for outdoor installations, ensuring long-term reliability.

Ease of Installation & Maintenance

The BOB50M Swing Gate Motor in UAE comes with two adjustable mechanical stops for fine-tuned opening and closing. The easy top-access release simplifies manual operation in case of a power cut. Its compact, neat design makes it perfect for wrought-iron gates or decorative entrances where aesthetics matter.

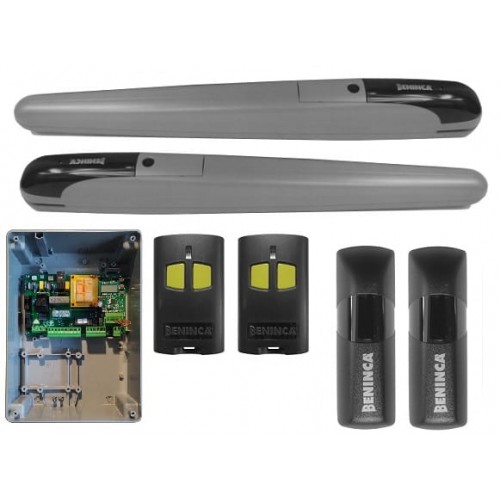

BENINCA BOB50M Kit Includes:

• 2 × BOB50M Swing Gate Motors

• 1 × HEADY Control Unit

• 1 × PUPILLA.T Pair of Adjustable Photocells

• 1 × LAMPY Flashing Light with Integrated Antenna

• 2 × TO.GO Remote Controls

• 1 × Push Button

• 2 × Fixing Brackets

Technical Specifications:

• Power Supply: 230 Vac (50–60Hz)

• Motor Supply: 230 Vac

• Max Absorbed Current: 1.4 A

• Maximum Thrust: 2500 N

• Opening Time: 26 seconds

• Standard Stroke: 455 mm

• Max Stroke: 520 mm

• Duty Cycle: 30%

• Protection Level: IP44

• Operating Temperature: -20°C to +50°C

• Leaf Max Dimension: 5.0 m

• Weight: 11.6 kg

• Kit Weight: 19.6 kg

Why Choose IGTS Technical Services?

IGTS Technical Services is the #1 company for Swing Gate Motors in Dubai, offering expert installation and maintenance for Beninca automation systems. We deliver reliable, efficient, and durable gate solutions across the UAE — ensuring maximum security and convenience for your property.
