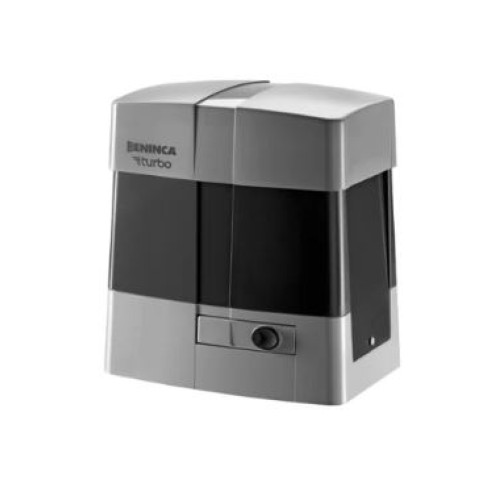

BENINCA BULL 1224 TURBO

Description

The BENINCA BULL 1224 TURBO Sliding Gate Motor, available from IGTS Technical Services UAE, is a high-performance 24V commercial sliding gate motor built to handle gates up to 1200 kg. Engineered for fast, reliable, and safe operation, this motor is ideal for residential, commercial, and industrial gates across Dubai, Sharjah, Ajman, and Abu Dhabi. For a sliding gate motor near me, trust IGTS Technical Services, the #1 company and one of the best companies in the UAE for gate automation.

Powerful and Efficient Operation

The BULL 1224 Turbo features a turbo gear motor capable of maximum manoeuvre speeds up to 24 m/min, exceeding standard motor performance. Its intelligent design allows smooth and controlled operation, even under heavy loads. The integrated encoder ensures precise gate travel tracking, while the motor continuously adjusts torque for optimal performance and safety.

Advanced Safety and Control

This motor includes a built-in control unit and integrated receiver with Advanced Rolling Code (ARC) technology. It ensures secure operation and allows connection to automation systems when needed. The motor supports heavy-duty use with a duty cycle of 80%, IP44 protection, and an operating temperature range from -20°C to +50°C.

Complete Installation Kit

The BENINCA BULL 1224 TURBO comes with a comprehensive installation kit, including all necessary accessories for fast and secure setup. This kit ensures you can install and operate your sliding gate immediately without additional purchases.

BENINCA BULL 1224 TURBO Kit Includes:

• 1 x BENINCA Bull 1224 Turbo Sliding Gate Motor

• 2 x BENINCA Remote Controls 433.92 MHz

• 1 x Pair of Photocells for outdoor use

• 1 x Built-in Control Unit

• 4 x Nylon Rack 1m

• 1 x Blinker Light

• 1 x Push Button

Technical Specifications:

• Maximum Gate Weight: 1200 kg

• Power Supply: 115–230V AC (50–60Hz)

• Motor Supply: 24V DC

• Max Absorbed Current: 3 A

• Maximum Thrust: 390 N

• Opening Speed: 12.5–25.5 m/min

• Duty Cycle: 80%

• Protection Level: IP44

• Built-in Control Unit: Yes

• Integrated Receiver: Yes

• Encoder: Yes

• Magnetic Limit Switches: No

• Pinion for Rack: M4 Z18

• Operating Temperature: -20°C to +50°C

• Lubrication: Oil

• Motor Weight: 17.3 kg

• Kit Weight: 20 kg
