BENINCA BULL 624 TURBO

Description

The BENINCA BULL 624 TURBO Sliding Gate Motor, available from IGTS Technical Services UAE, is a high-performance 24V commercial-grade motor designed for sliding gates up to 600 kg. Made with Italian engineering, the Bull 624 Turbo ensures fast, safe, and precise automation for residential, commercial, and industrial gates across Dubai, Sharjah, Ajman, and Abu Dhabi. For a sliding gate motor near me, rely on IGTS Technical Services, the #1 company and one of the best companies in the UAE for gate automation.

Powerful and Fast Operation

The Bull 624 Turbo is equipped with a turbo gear motor, providing a maximum opening speed of 25.5 m/min, higher than standard models. The motor features an encoder signal recreated by the control unit based on electric motor parameters. This allows the system to trace the gate travel accurately, manage slowing optimally, and adjust torque in real time for maximum safety.

Advanced Intelligent Control

This motor includes an intelligent power control system, which calculates dynamic data to optimize thrust and torque. The system detects any critical points and adjusts the motor performance according to the actual load and operational requirements. The integrated receiver uses 433.92 MHz Advanced Rolling Code (ARC) for secure remote control. Additionally, the motor supports KNX home automation systems with an optional X.BE card, providing up to 512 transmitters storable inside the receiver.

Complete Installation Kit

The BENINCA BULL 624 TURBO comes with a complete installation kit, including all necessary accessories for quick and reliable setup. The kit provides everything needed for a ready-to-use sliding gate solution.

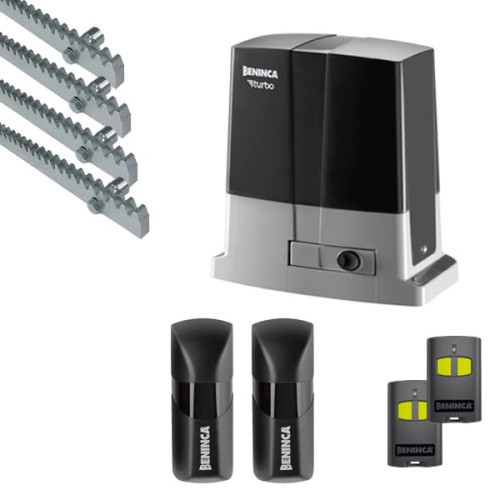

BENINCA BULL 624 TURBO Kit Includes:

• 1 x BENINCA Bull 624 Turbo Sliding Gate Motor

• 2 x BENINCA Remote Controls 433.92 MHz

• 1 x Pair of Photocells for outdoor use

• 1 x Built-in Control Unit

• 4 x Nylon Rack 1m

• 1 x Blinker Light

• 1 x Push Button

Technical Specifications:

• Maximum Gate Weight: 600 kg

• Power Supply: 115–230V AC (50–60Hz)

• Motor Supply: 24V DC

• Max Absorbed Current: 3 A

• Maximum Thrust: 330 N

• Opening Speed: 12.5–25.5 m/min

• Duty Cycle: 60%

• Protection Level: IP44

• Encoder: Yes

• Magnetic Limit Switch: No

• Pinion for Rack: M4 Z18

• Operating Temperature: -20°C to +50°C

• Lubrication: Grease

• Motor Weight: 10 kg

• Kit Weight: 10.6 kg
